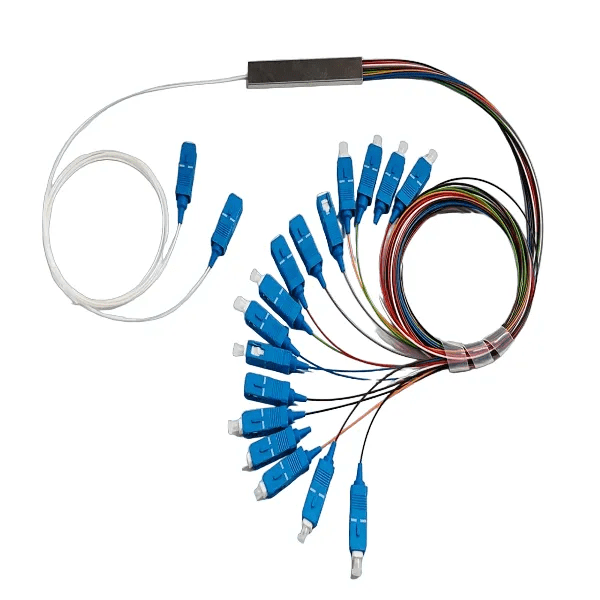

PLC Fiber Optic Splitter 2x16 with SC/PC Connectors – High-Precision Optical Splitter for FTTH, PON, CATV & Telecommunication Networks
✅ 2x16 splitter design
✅ SC/PC connectors attached
✅ Suitable for FTTH, PON
✅ High signal uniformity
✅ Compact & rugged design
✅ Wide temperature range
Choose Quantity
The PLC Fiber Optic Splitter 2x16 with SC/PC Connectors is a passive optical device designed for precise and reliable signal distribution in fiber optic networks. Utilizing planar lightwave circuit (PLC) technology, this splitter evenly divides one or two optical input signals into sixteen output signals with minimal loss and outstanding stability.
Built with high-quality optical components and a compact form factor, this 2x16 splitter ensures uniform signal transmission, making it ideal for high-density fiber network applications such as FTTH (Fiber to the Home), PON (Passive Optical Networks), CATV, and LAN/WAN deployments.
Equipped with SC/PC connectors, this model offers quick plug-and-play installation and reliable performance. It features excellent environmental stability, enabling it to function efficiently under varying temperature and humidity conditions — perfect for both indoor and outdoor applications.
Key Features:
✅ Configuration: 2x16 PLC splitter with 2 input and 16 output fibers
✅ Connector Type: SC/PC (Simplex) – pre-terminated for easy deployment
✅ Technology: Planar Lightwave Circuit (PLC) for uniform splitting and low insertion loss
✅ Material: High-quality ABS box or mini steel tube packaging (based on variant)
✅ Fiber Type: G.657A1 or G.652D (Single-mode fiber)
✅ Wavelength Range: 1260 – 1650 nm
✅ Operating Temperature: -40°C to +85°C
✅ Storage Temperature: -40°C to +85°C
✅ Applications: FTTH, FTTB, PON, GPON, CATV, data centers, telecom networks
✅ Compliance: Telcordia GR-1209/1221, RoHS & ISO Certified
Applications:
✅ Fiber to the Home (FTTH) networks
✅ Passive Optical Networks (PON/EPON/GPON)
✅ CATV systems and digital video signal transmission
✅ Local Area Networks (LAN) and Wide Area Networks (WAN)
✅ Optical Signal Testing Equipment
