ECS5520-18X | L2+/Lite L3 10G Ethernet Aggregation Switch with 2x 40G Uplinks

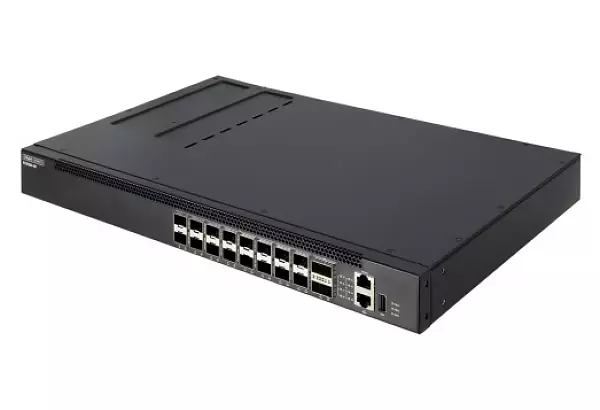

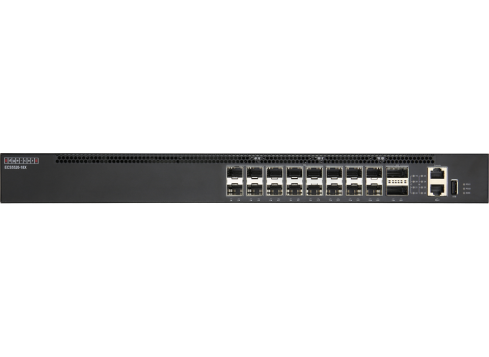

The ECS5520-18X is a high-performance Layer 2+/Lite L3 managed switch, designed for carrier/enterprise aggregation or small data center top-of-rack deployment. With 16 x 10G SFP+ ports and 2 x 40G QSFP+ uplinks, it ensures high-speed connectivity, reliability, and scalability. The switch delivers advanced QoS, security, and multicast control, making it ideal for ISP networks, data centers, and enterprise environments.

Key Features:

• High-Performance Switching – 480 Gbps switching capacity for fast and efficient data transfer.

• 16 x 10G SFP+ Ports + 2 x 40G QSFP+ Uplinks – Ideal for enterprise aggregation and core network applications.

• Layer 2+ & Lite Layer 3 Features – Supports static routing, VLANs, and advanced network protocols.

• Dual Hot-Swappable Power Supplies – Redundant and load-sharing power supplies ensure maximum uptime.

• Continuous Availability – Supports MLAG, ITU-T 8032 ERPSv2, MSTP, RSTP, and STP for network reliability.

• Comprehensive QoS – 802.1p, DSCP, ACL, WRR, and strict priority scheduling for traffic prioritization.

• Advanced Security – Port security, 802.1X, DHCP snooping, IP Source Guard, ACLs, DAI, SSH, and SSL for robust network protection.

• Multicast Control – IGMP Snooping v1/v2/v3 and MVR for seamless multicast traffic management.

• Simple Management – CLI, Web GUI, SNMP v1/v2/v3 support with a complete private MIB for easy configuration.

• IPv6 Support – IPv6 Management, DHCPv6 Snooping, and IPv6 Source Guard for future-ready networks.

• Redundant Power Options – Optional 2nd AC power module & DC power module for enhanced reliability.

Compatible Transceivers & Cables:

• Transceivers: 1000BASE-SX/LX/EX/ZX, 10G SFP+, 40G QSFP+ (SR4/LR4)

• Cables: 10G SFP+ DAC/AOC, 40G QSFP+ DAC/AOC, 40G DAC/AOC QSFP+ to SFP+ Breakout

Applications:

• Enterprise & ISP Aggregation – Ideal for high-speed aggregation of enterprise networks.

• Data Centers – Designed for small data centers and high-performance network environments.

• Campus & Business Networks – Ensures stable, secure, and high-speed connectivity.

• Service Providers (ISPs) – Supports L2 VPNs, advanced OAM, and resilient networking.
