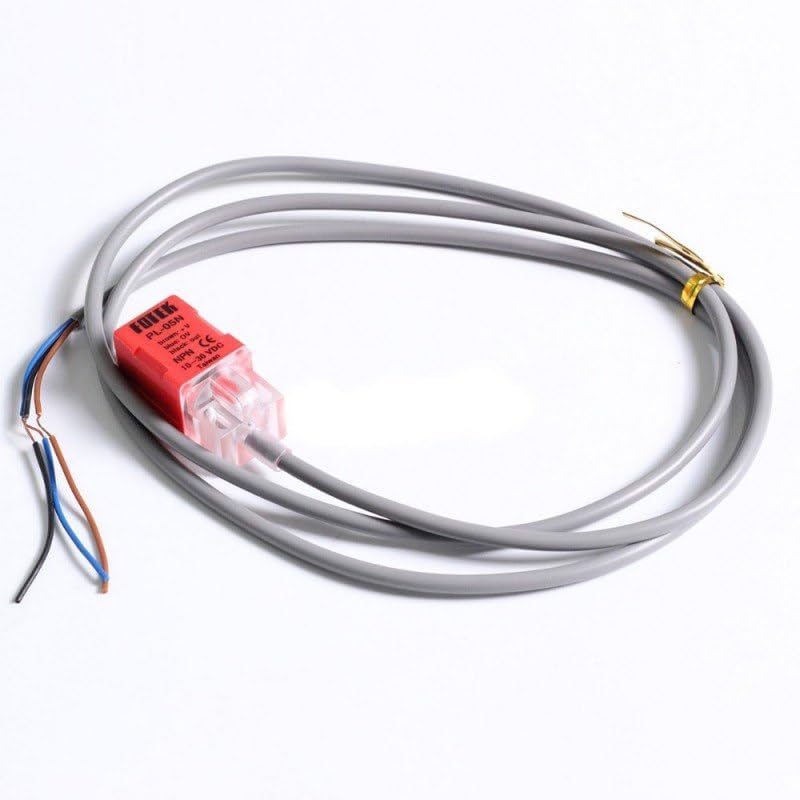

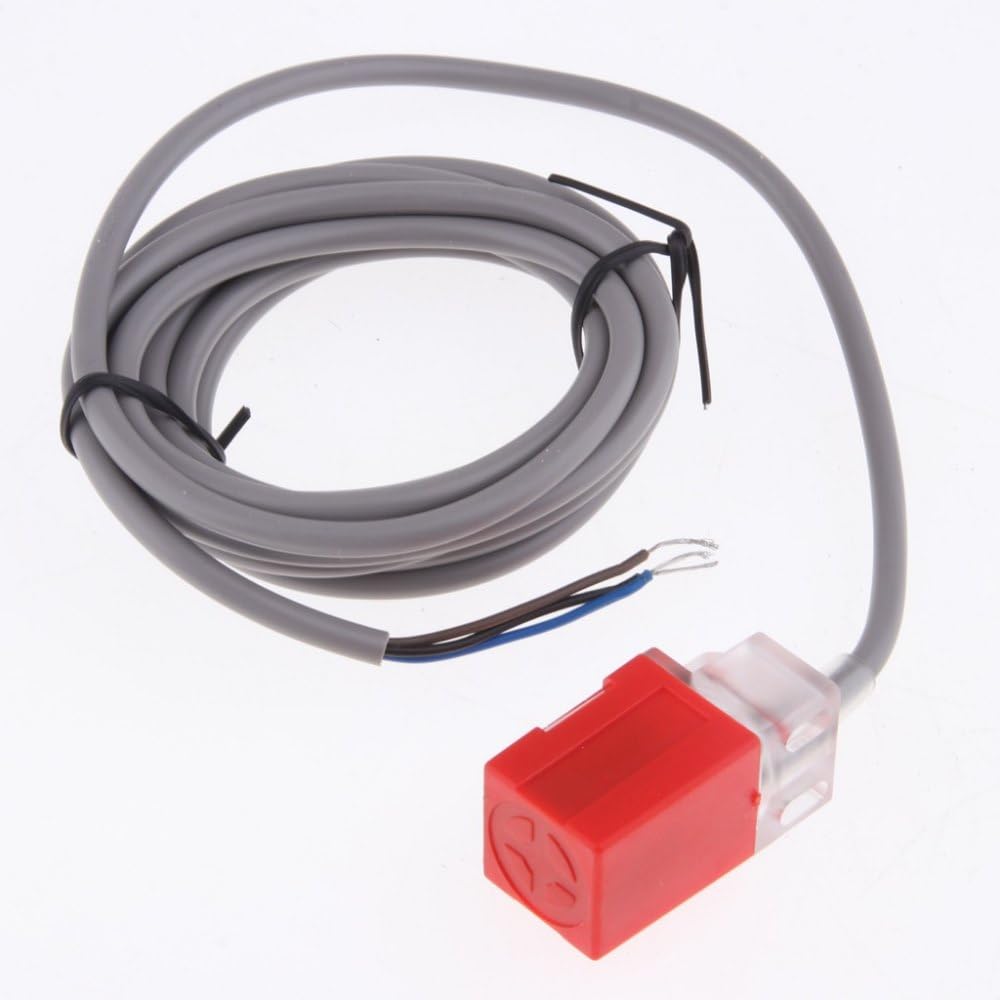

FOTEK PL-05N Proximity Sensor, NPN, 10-30 VDC, Inductive Type, Compact Design, for Industrial Applications
Model: FOTEK PL-05N

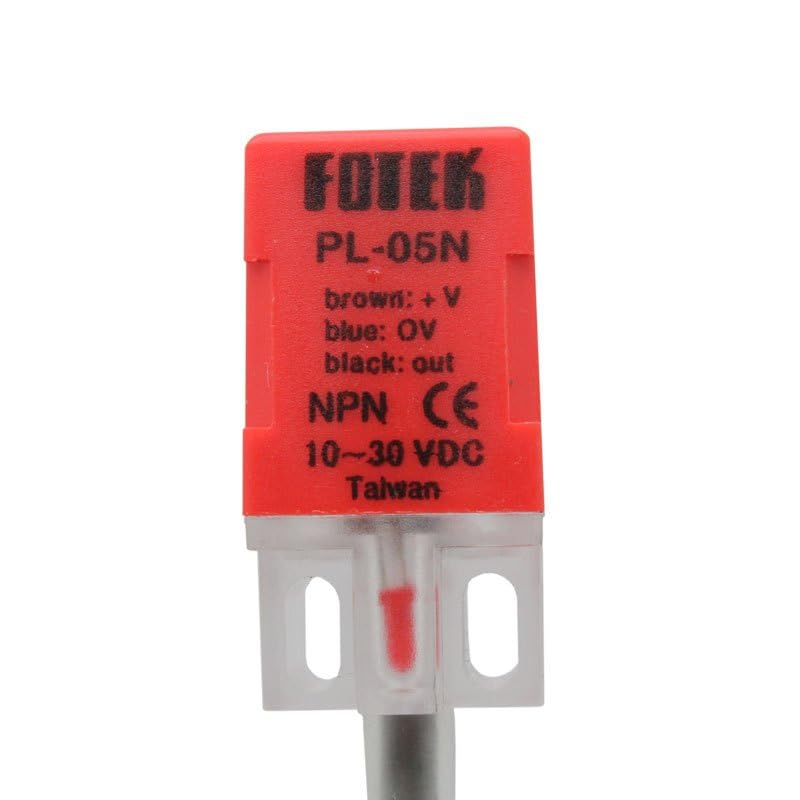

Brown wire: Brown: (+Ve).
Blue wire: 0 V (GND).
Black wire: signal
Sensing Distance: 5mm (inductive, metal detection)
Operating Voltage: DC 10-30V
Output Type: NPN (Normally Open)
Load Current: Max. 150mA
Response Frequency: 800Hz
Protection Rating: IP67 (dustproof and waterproof)
Hysteresis: <10% of sensing distance
Operating Temp/Humidity: -20°C ~ +80°C / 35%–90% RH
Housing Dimensions: 35mm (L) x 17mm (W) x 17mm (H)
Mounting Hole Size: 3.2mm; Pitch: 10.5mm
Applications: Industrial automation, CNC machinery, robotics, conveyor systems, assembly lines
Choose Quantity
FOTEK PL-05N Proximity Sensor – Compact & Reliable Detection
The FOTEK PL-05N Proximity Sensor is a high-performance, compact inductive sensor designed for industrial automation applications. It provides accurate and reliable non-contact object detection, making it an essential component in factory automation, robotics, and manufacturing systems.
With a 5mm sensing distance and NPN normally open (NO) output, the PL-05N operates efficiently on 10-30V DC and supports a load current up to 150mA. This sensor features a robust plastic housing, IP67 waterproof rating, and 2-meter long cable for flexible installation. Its compact design (35x17x17mm) fits easily into tight spaces, and it has a quick response frequency of up to 800Hz, ensuring precise operation in high-speed environments.
Ideal for detecting metal objects in assembly lines, machinery, conveyors, and CNC equipment, the FOTEK PL-05N is built to withstand industrial conditions with a wide operating temperature range (-20°C to +80°C) and excellent protection against dust and water.
Key Features:
Compact Design: Ideal for space-constrained installations.
Wide Voltage Range: Operates within 10-30 VDC.
Reliable Detection: Accurate object sensing with advanced technology.
Easy Wiring: Simple, color-coded terminals for quick installation.
Versatile Applications: Suitable for various industrial uses.
