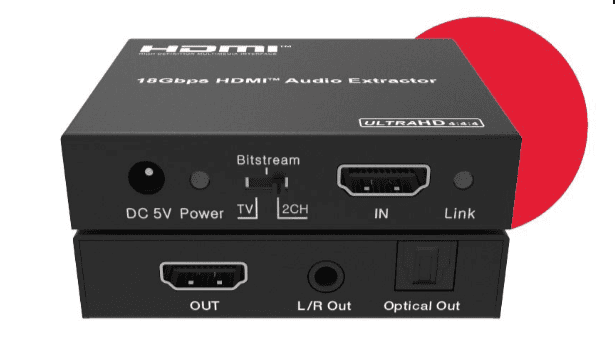

HDMI Audio Extractor 4K 60Hz, 18Gbps | HDMI 2.0, HDCP 2.2, SPDIF & L/R Output, HDR, CEC, Dolby/DTS Audio Support
✅ HDCP 2.2 Compliant
✅ DVI 1.0 Compatible
✅ 18Gbps Bandwidth Support
✅ 4K@60Hz Resolution
✅ HDMI 2.0b Standard
✅ Audio Extraction Support
✅ SPDIF & L/R Output
Choose Quantity
Upgrade your audio experience with this HDMI Audio Extractor, designed to deliver high-performance audio and video output from your HDMI source device. Supporting 18Gbps video bandwidth and 4K@60Hz resolution (YUV 4:4:4) as per HDMI 2.0b standards, it ensures ultra-clear visuals with full HDR10 support.
Extract digital or analog audio seamlessly using SPDIF (optical) or L/R analog outputs—perfect for connecting to soundbars, AV receivers, or home theater systems. This device supports multi-channel LPCM 2CH, Dolby Digital 2.0/5.1CH, and DTS 2.0/5.1CH formats for a truly immersive sound experience.
With CEC bypass and high bit rate (HBR) audio pass-through, it offers full compatibility with modern AV setups while maintaining ease of control. The audio sampling rate supports up to 192kHz, ensuring pristine sound quality.
Key Features:
✅ Supports 4K@60Hz (YUV 4:4:4) – HDMI 2.0b compliant with HDR10 pass-through
✅ Audio Extraction to SPDIF & L/R – Output digital or analog audio from HDMI
✅ Audio Format Support: LPCM 2CH, Dolby Digital 2.0/5.1, DTS 2.0/5.1
✅ 18Gbps Video Bandwidth – Smooth playback with no signal loss
✅ High Bit Rate (HBR) Audio Pass-Through – Full compatibility with advanced audio streams
✅ CEC Bypass Enabled – Maintain device control over a single remote
✅ Sampling Rate Up to 192kHz – High-resolution audio clarity
✅ HDCP 2.2 & DVI Compliant – Fully compatible with latest devices
This HDMI audio extractor is ideal for TVs without audio out, or setups needing independent audio routing — an essential for any modern home or office entertainment system.
