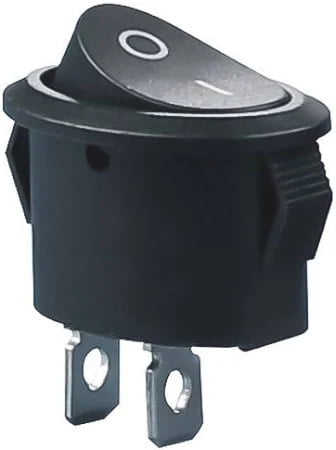

Oval Shape Rocker Switch Button SPST 2 Pin ON-OFF
SKU : PRMT-OVL-RS-17
Rs.20.00 Rs.39.00 MRP Inclusive of all taxes. Shipped in 48 Hours from Delhi warehouse)Deal Price ₹16.95 Plus GST
Stock Available : 10000
Choose Quantity
- Buy from 2 to 9 products @ Rs.15.00 per item 61.5%
- Buy from 10 to 24 products @ Rs.12.00 per item 69.2%
- Buy above 25 @ Rs.10.00 per item 74.4%
The image shown here may vary from the actual product supplied
| Switch Function | ON/OFF |
| ROHS Compliant | Yes |
| Switch Type | Paddle Rocker |
| Material/Body | Plastic |

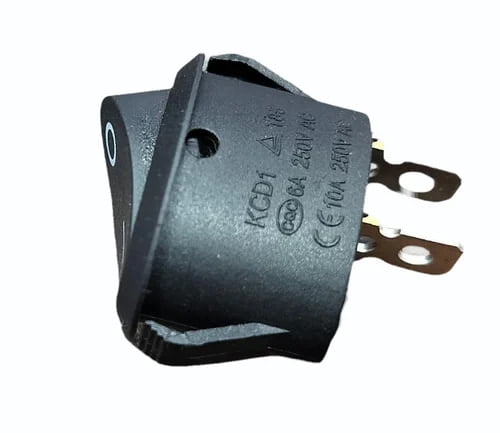

Rocker Switch Hy12 is a reliable SPST (Single Pole Single Throw) ON-OFF rocker switch with a 10A 125VAC/6A 250VAC rating. It has a standard black housing made of Nylon 66 and a button made of Nylon 66 as well. The button is black and red and also comes in a transparent color. The switch has a contact resistance of 50mOhm max and an operating temperature range of -25C~+85C. It has an insulation resistance of 100mOhm min (500VDC) and an electrical life of >= 10,000 cycles. It has a dielectric strength of 1500VAC 1 minute and a mechanical life of >= 100,000 cycles. The KCD1-9-101 Rocker Switch Hy12 is certified by CE, CQC, and SGS. OEM or ODM is also available.
