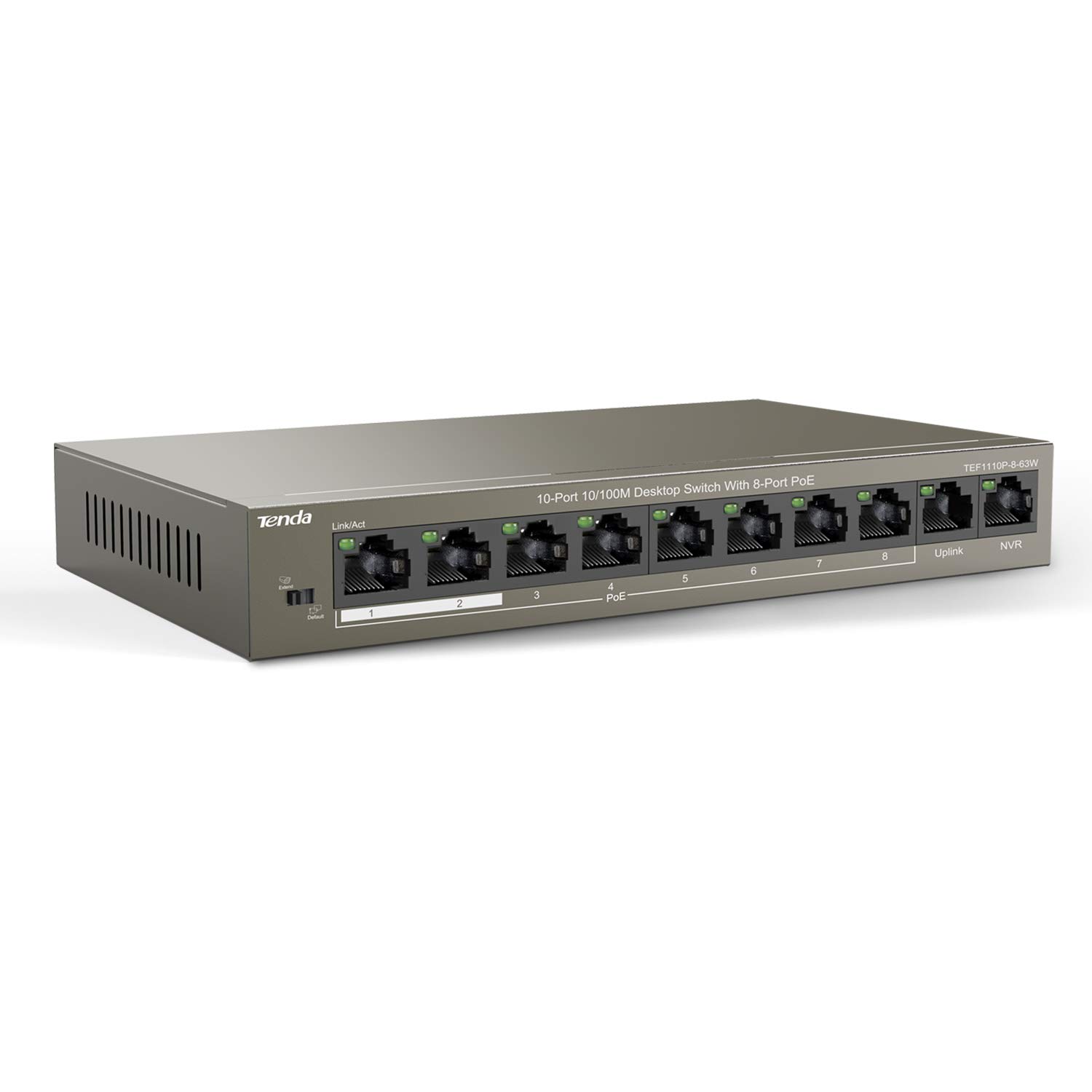

Tenda (TEF1110P-8-63W) PoE Switch 10-Port/100M Ethernet Network Switch, Hub, 8 PoE Ports up to 30 W and 58 W for All PoE Ports, 6 kV Lightenning Protection, Plug and Play (Grey)
Dual Uplink Ports

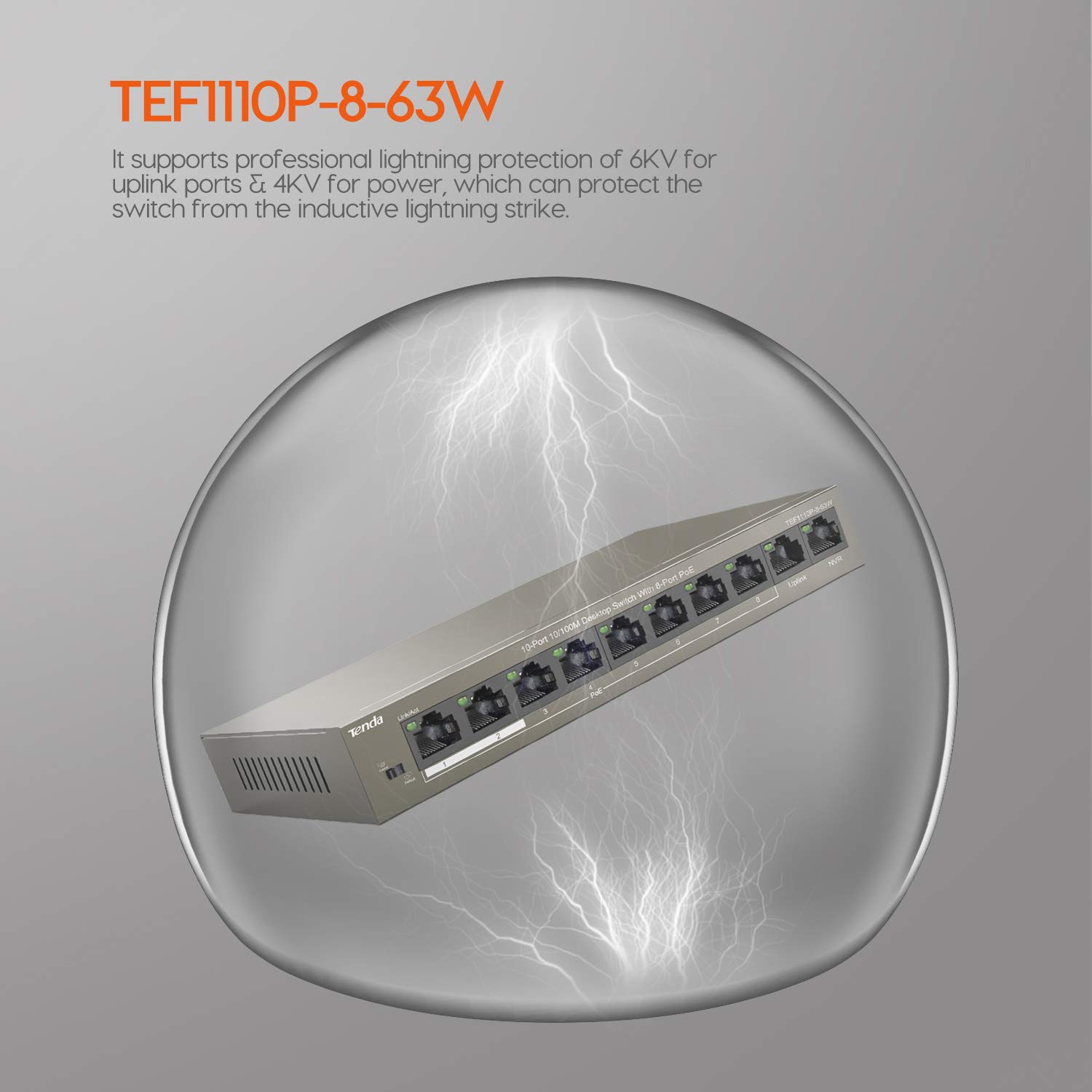

6 kV Lightning Protection
Standard PoE Supply
IEEE 802.3at/af
58W Total Power
30W Per Port
250m Transmission
One-Key VLAN
Surge Protection
PSE Short-Circuit
NVR/Router Compatible
Choose Quantity
Brand | Tenda |
|---|---|
Model Number | TEF1110P-8-63W |
Interface Type | RJ45 |
Data Transfer Rate | 100 Megabits Per Second |
Manufacturer | Shenzhen Tenda Technology Co. Ltd. |
Item Height | 26 Millimeters |
Item Width | 17.8 Centimeters |
Standing screen display size | 15.6 |
Product Dimensions | 10.4 x 17.75 x 2.6 cm; 200 g |
Item number | TEF1110P-8-63W |
Processor Count | 4 |
Graphics Card Interface | Integrated |
Number of USB 2.0 Ports | 2 |
Wattage | 3600 Watts |
Are Batteries Included | No |
10*10/100 Mbps Base-TX RJ45 ports.

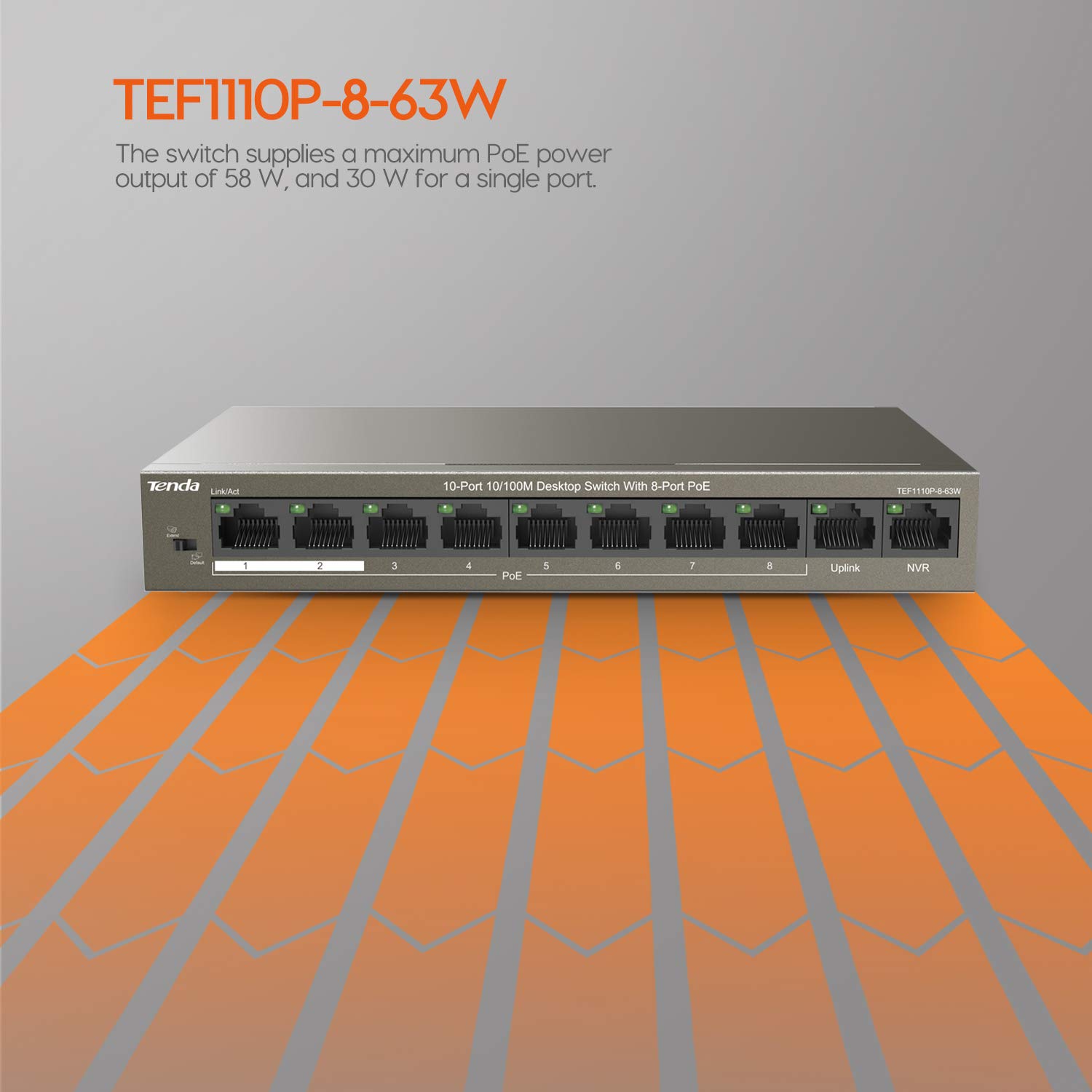

8*10/100 Mbps ports, with IEEE 802.3at / af standard support and a maximum PoE output power of 58W, 30W on a single port.

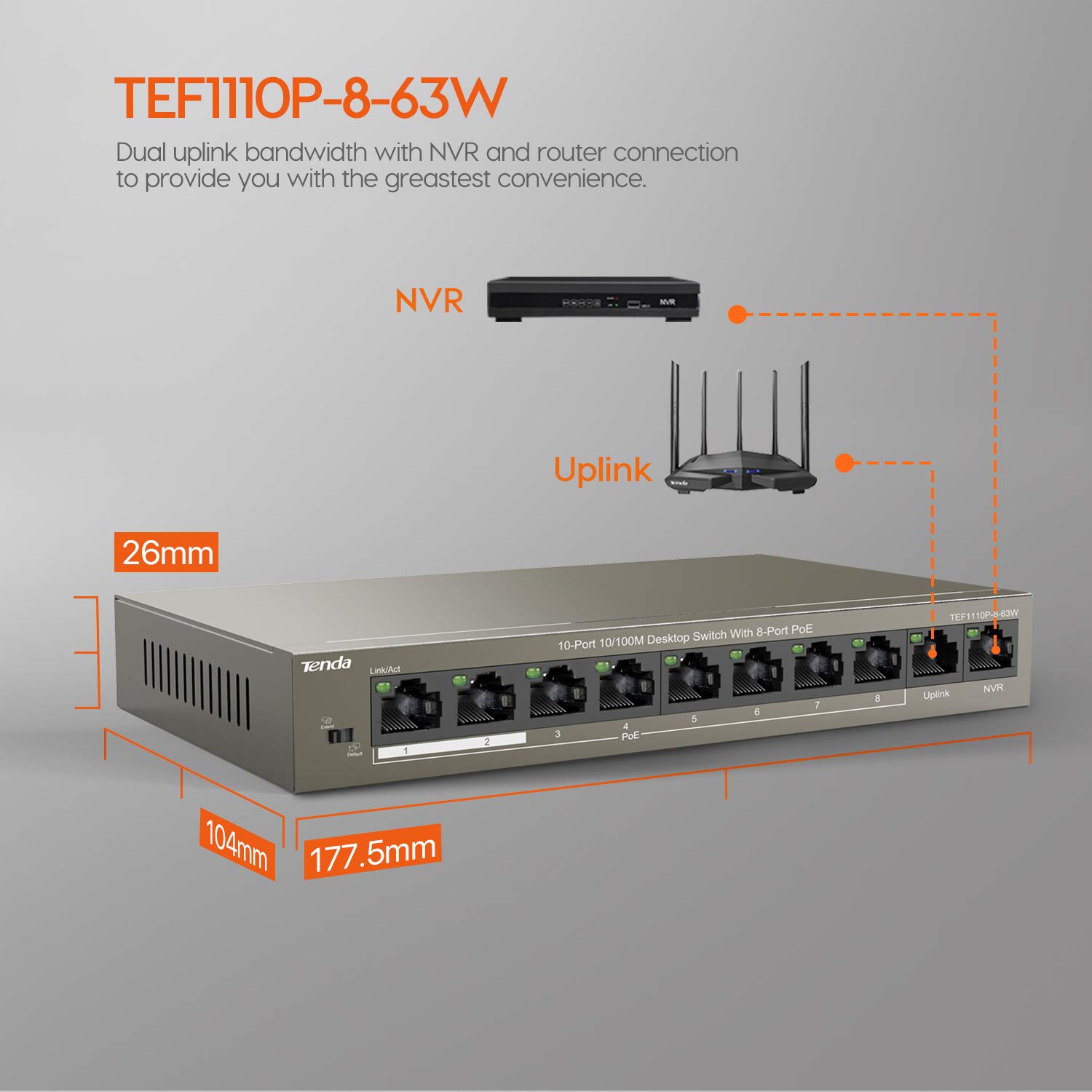

2 uplink ports for NVR and router support.

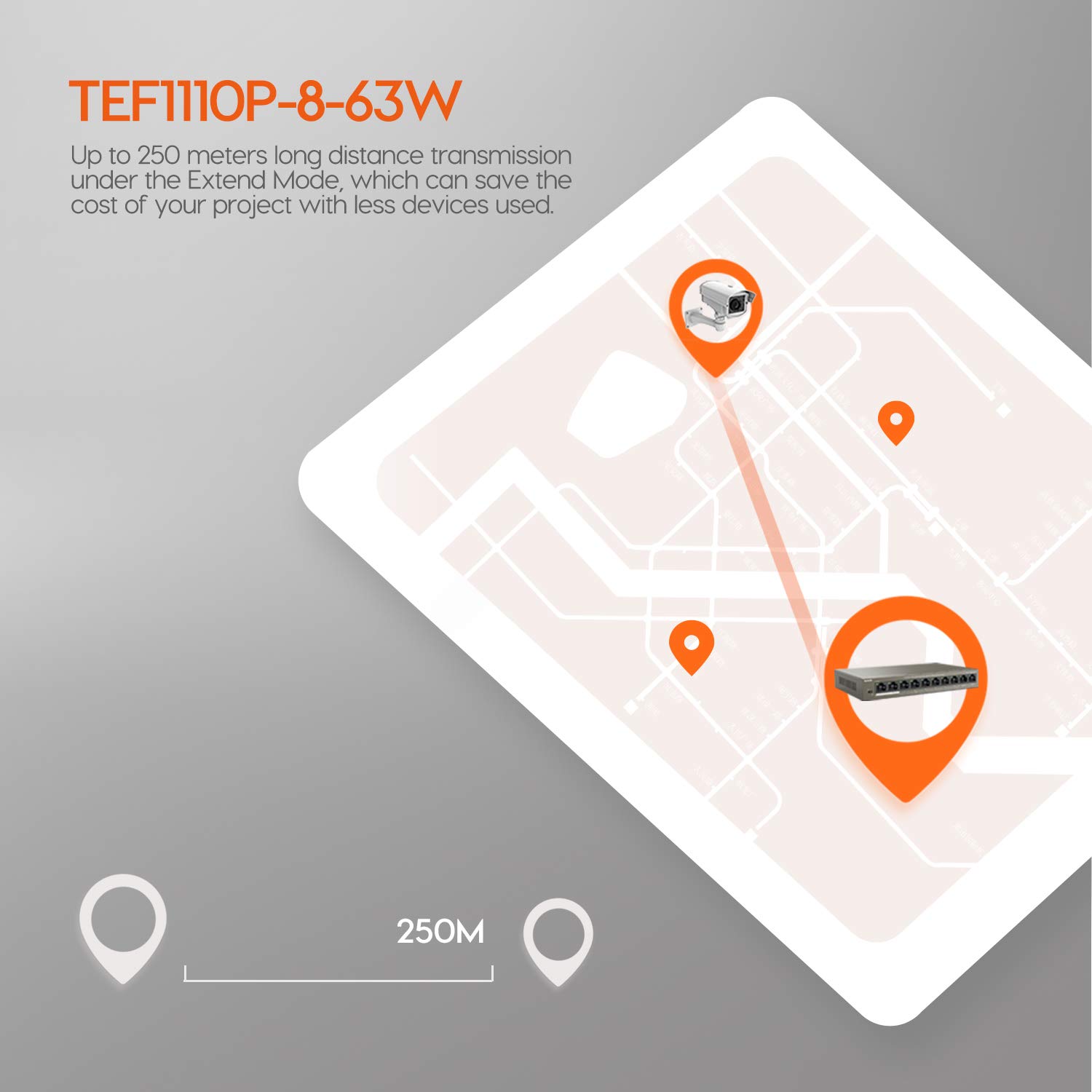

Extended mode: Use the common twisted pair, which can support data transmission up to 250 meters, this allows cost savings in terms of design, allowing you to use fewer devices.
Extended mode: Use the common twisted pair, which can support data transmission up to 250 meters, this allows cost savings in terms of design, allowing you to use fewer devices.

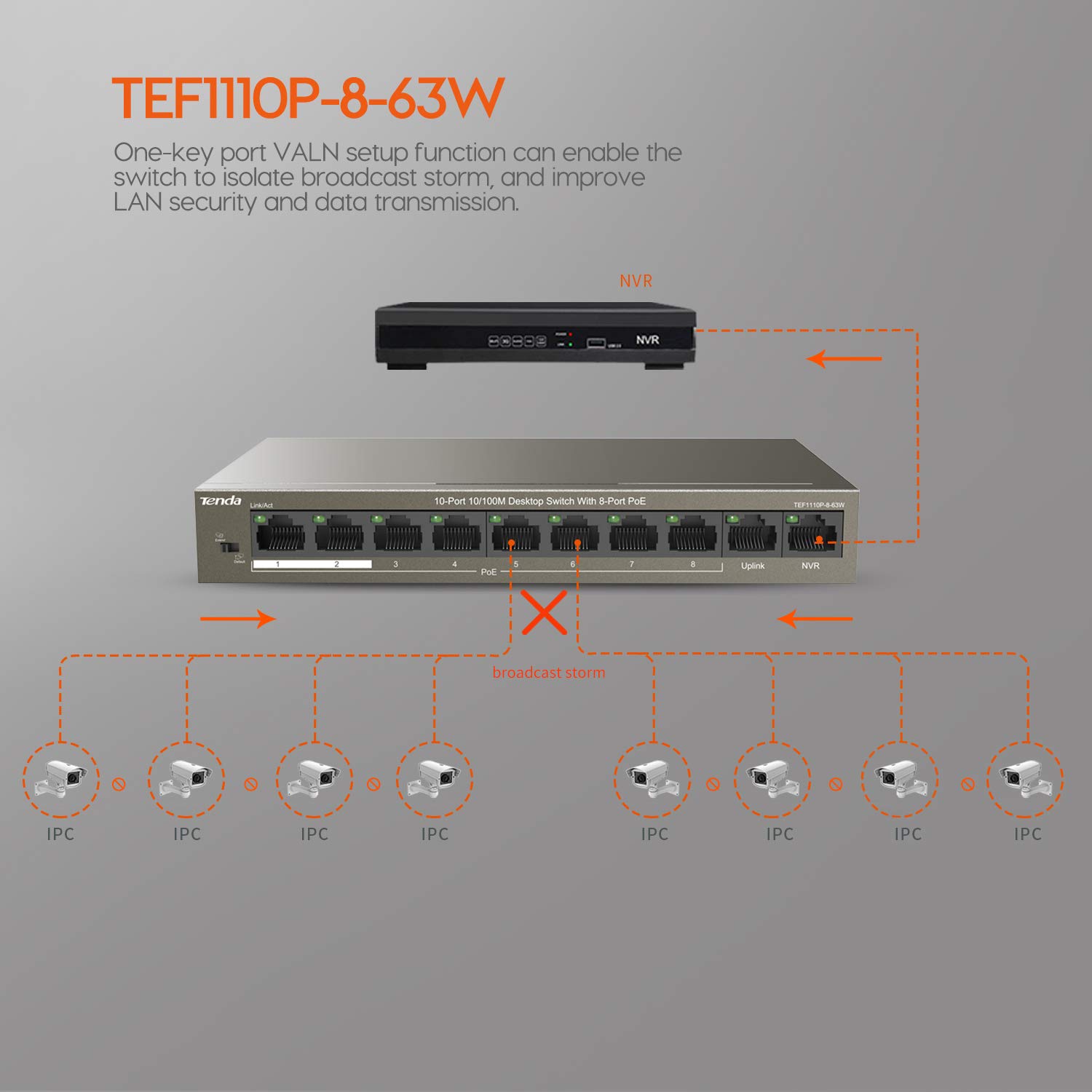

One-key VLAN: With Extend mode active, ports 1-8 are isolated from each other, but can still communicate with the 2 uplink ports. These functions can allow the switch to isolate the broadcast storm, improve LAN security and data transmission
