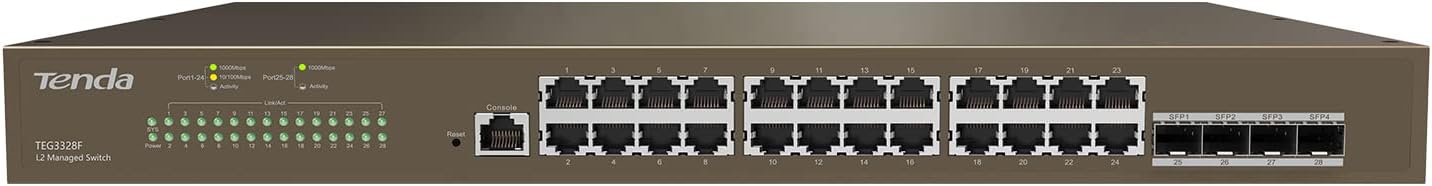

Tenda (TEG3328F) 28-Port L2+ Gigabit Smart Managed Switch, 24 GE Ports, 4 SFP, QoS, VLAN, Static Routing
LLDP Neighbor Discovery
Port aggregation
IGMP Multicast
Loop Protection
Port mirroring
6kV Lightning Protection
Smart QoS
Choose Quantity
Brand | Tenda |
Model | TEG3328F |
Ports | 24*10/100/1000 Base-T Ethernet ports 4*1000 Base-X SFP ports 1*Console port |
Model Name | TEG3328F |
Power Consumption | Full load: 24W Empty load: 10W |
Usage/Application | Networking |
Buffer Size | 12Mb |
Dimensions | 440 mm x 179.6 mm x 44 mm |
Mac Address Table | 16k |
Brand name | Tenda |
Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
Forwarding mode | Store-and-forward |
Switch capacity | 56Gbps |
Port Configuration-24 gigabit ethernet ports and 4 gigabit SFP Up-Link. Switching capacity is 56 Gbps.
Sound Security Feature -Supports IP address filtering, MAC address filtering, ARP filtering, DoS attack defense, and ACL access control list, improving network security.

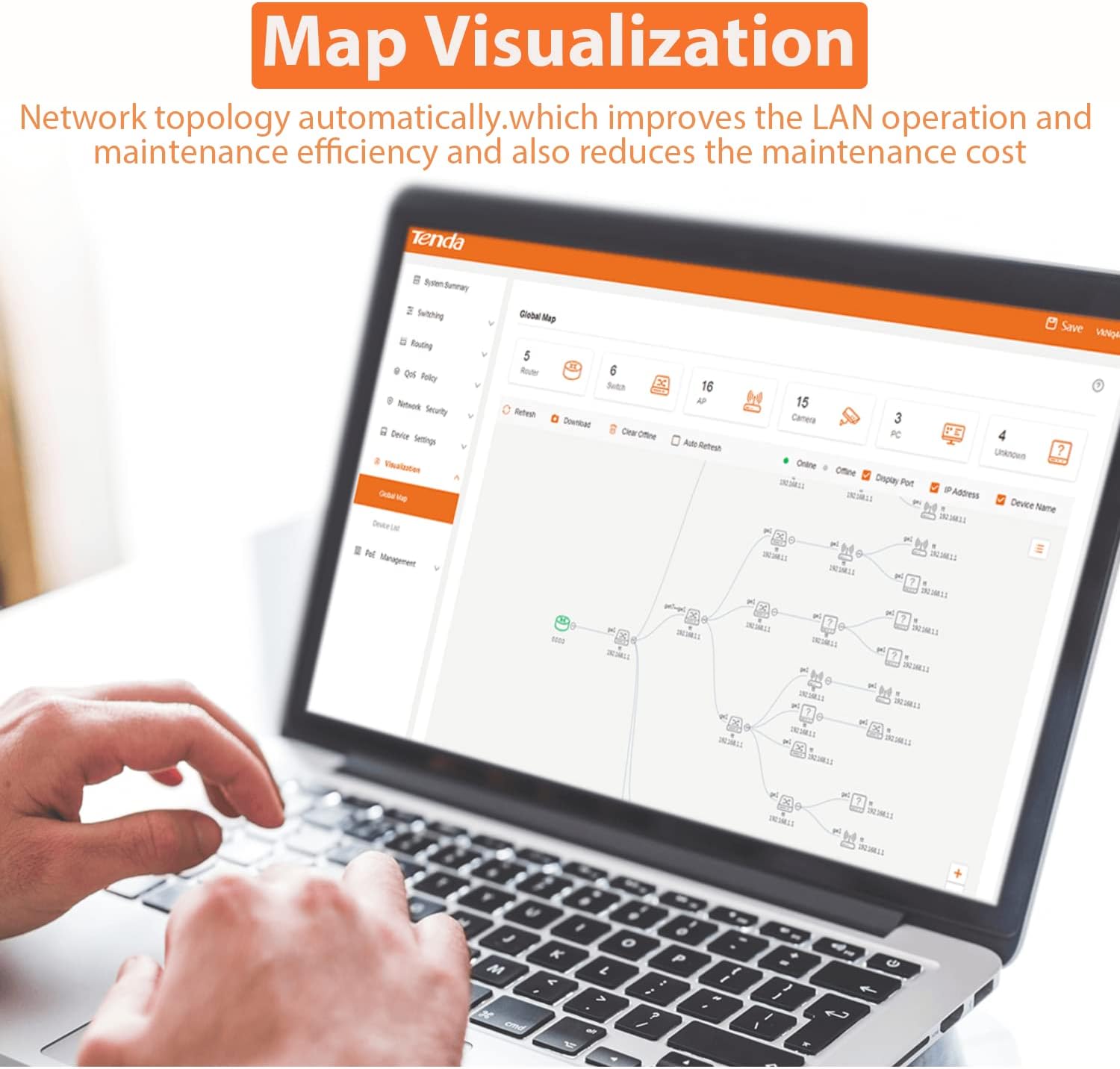

Map Visualization-The system can generate the network topology automatically, which improves the LAN opera-tion and maintenance efficiency and also reduces the maintenance cost.
Dual-image Backup-The switch features two system files that backup each other, guaranteeing the proper startup and stable operation of the system.
Optical Fiber Port Aggregation -4 independent SFP ports support optical fiber port aggregation functionality, meeting the demands of long-distance fiber optic networking.
